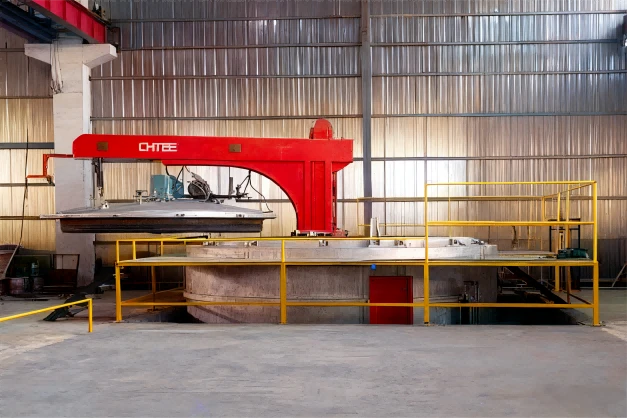

Vertical Vacuum Annealing Furnace

1. After annealing, the material surface has no oxide scale, slight decarburization, high spheroidization rate, and stable quality.

2. The insulation layer of the stove cover adopts ceramic fiber cotton, which has a better insulation effect, and the structure of the stove cover is designed to be more lightweight and stronger. The outer stove body: the stove wall adopts high-grade ceramic fiber cotton, and the processing method is a dense high-pressure type. The bottom of the stove has layers of insulation cotton, refractory bricks, and seamless insulation, which has an excellent insulation effect.

3. The structure of the inner barrel and convection is lightweight and has a long service life. A reasonable heating method dominated by convection is achieved, and the temperatures of the inner and outer workpieces are more uniform.

4. Super strong convection fan: Large air volume, high strength, fast heating, time and energy saving.

5. Strong cooling system: Speeds up the cooling rate, saves time, and improves production efficiency.

6. Preliminary vacuum: Pre-evacuation of air in the furnace, addition of nitrogen for replacement and ultra-high pressure constant pressure, ensuring oxidation of the piece in the furnace.

Advanced Annealing Furnace Solutions for Precision Heat Treatment

1. Heating Method

The furnace adopts electrical heating, which provides stable and precise temperature control throughout the entire process. Compared to traditional fuel-based heating, electrical heating is cleaner, easier to regulate, and more energy-efficient. This ensures a uniform heating environment inside the chamber, reducing temperature fluctuations and improving consistency in the annealing process.

2. Protective Atmosphere

The system operates under a nitrogen protective atmosphere, which effectively isolates the workpieces from direct contact with oxygen. By maintaining this controlled atmosphere, the furnace prevents surface oxidation and contamination during heat treatment. This results in cleaner, higher-quality parts while also extending the service life of the equipment by reducing scaling and furnace contamination.

3. Processing Characteristics

The furnace is designed to guarantee compliance with strict decarburization standards, ensuring that workpieces remain free from oxidation and only experience slight, controlled decarburization. This leads to improved material performance, stable metallurgical quality, and better surface conditions for subsequent machining or forming operations. The process stability ensures repeatable, high-quality results for demanding industrial applications.

Application

This equipment is an annealing furnace specially designed for spheroidizing annealing and other heat treatment processes. It is widely applicable in the following industries and product categories:

Custom Vertical Vacuum Annealing Furnace



1. Automotive Industry
Automotive fasteners
High-strength wire rods and coils used in vehicle manufacturing

2. Aerospace Industry
Aerospace fasteners and precision components requiring spheroidizing annealing for improved machinability and fatigue resistance

3. Railway Industry
Railway fasteners, bolts, and structural fastening parts subjected to high loads and long service life

4. Power and Energy Industry
Power accessories, electrical connectors, and supporting hardware requiring stable mechanical properties

5. General High-Strength Fasteners
Wire rods and coil materials for producing high-tensile bolts, nuts, and fastening systems across various industrial sectors

Why Choose Us?

Customized Expertise: Furnace size, temperature range, and vacuum system are tailored to your specific process (e.g., semiconductor grade or metal processing).

Global Support: 24/7 technical support.

Cost-Effectiveness: Energy-Efficient Design (30% lower power consumption than traditional furnaces) + 5-Year Warranty on Heating Elements.

When processing large batches of workpieces, how can we ensure consistent annealing results for each workpiece? For example, if 50 small metal parts are being heated simultaneously?

Consistency is ensured through a dual-dimensional approach of "structural design + process optimization":

Optimized furnace chamber airflow and temperature distribution: The vertical furnace chamber utilizes a "bottom-inlet + top-evacuation" airflow circulation system (if using a protective atmosphere). Combined with 3-5 zone heating elements (depending on the furnace chamber size), this achieves a temperature difference of ≤±3°C (at 1200°C) at any point within the furnace, preventing local overheating.

Workpiece placement specifications: Customized chemical fixtures (such as multi-layer hollow trays) are provided to ensure a spacing of ≥5mm between workpieces (facilitating heat transfer) and a distance of ≥20mm from the furnace wall (to prevent heat dissipation from the furnace wall).

Process parameter calibration: Each machine undergoes a "full load test" before shipment. This test uses 50 standard test pieces (of the same material) to simulate the customer's batch operating conditions. The test pieces are randomly inspected for hardness and metallographic structure, and the holding time and heating rate are calibrated to ensure a ≥99% pass rate.

What are the advantages of a vertical vacuum annealing furnace compared to a conventional atmosphere annealing furnace when processing high-purity metals (such as oxygen-free copper)?

The core advantages lie in "contamination prevention" and "purity maintenance." The specific differences are as follows:
Atmosphere Control Accuracy: Conventional atmosphere annealing furnaces rely on inert gases (such as Ar) to displace air, resulting in residual oxygen levels typically ≥50 ppm. This equipment, however, maintains a vacuum level of ≤1×10⁻⁵ Pa (corresponding to an oxygen content of ≤0.1 ppm), preventing the formation of a Cu₂O oxide layer on oxygen-free copper caused by trace oxygen, thus ensuring conductivity.
Impurity Removal Capability: A vacuum environment actively extracts trace volatile impurities (such as H₂ and CO) from oxygen-free copper, while an atmosphere annealing furnace only "isolates" impurities and cannot remove light element impurities inherent in the workpiece.
Surface Quality: After vacuum annealing, the oxygen-free copper surface requires no pickling (no oxide scale) and maintains a roughness of Ra ≤0.8μm. However, treatment in an atmosphere annealing furnace may leave trace amounts of atmospheric decomposition products, requiring additional cleaning.
