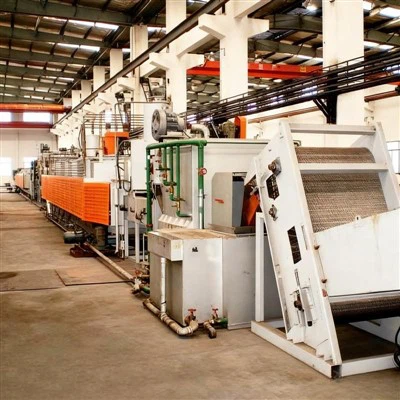

Continuous Mesh Belt Quenching Furnaces Features
Continuous Processing
No batch interruption. Stable production rhythm. Suitable for mass manufacturing.
Multi-Zone Control
Independent temperature zones ensure accurate thermal profiles for different processes.
Controlled Atmosphere Operation
Gas atmosphere reduces oxidation and supports stable metallurgical results.
Integrated Line Design
Heating, quenching, tempering, and cleaning units can be arranged into one continuous system.
Mesh Belt Conveyor：Heat-resistant belt transports workpieces through the entire furnace.
Heating Furnace Body：Segmented structure with multiple zones for preheating, heating, and soaking.
Drive System：External rollers and motor system control belt speed and stability.
Atmosphere Control System：Gas supply and regulation system maintains internal furnace conditions.
Quenching Unit (Optional)：Installed after heating section for rapid cooling processes.
Control System：PLC-based automation with touchscreen interface for monitoring and operation.
Process Advantages
•Continuous output without downtime
•Reduced labor and handling
•Stable and repeatable heat treatment results
•Suitable for automated production lines
•Scalable design based on production demand
Industrial Quenching Furnace Technical Characteristics
1.Temperature Precision
SCR + PID control system ensures stable and accurate temperature control.
2.Atmosphere Stability
Controlled gas input and monitoring maintain consistent furnace environment.
3.Energy Efficiency
Heat exchange design reduces energy loss during continuous operation.
4.Mechanical Stability
Belt correction and support system prevent deviation and ensure smooth movement.
5.Modular Configuration
Flexible integration of additional units such as tempering, washing, and drying.
Quenching Heat Treatment Furnace Applications
1.This type of mesh belt heat treatment furnace is suitable for:
•Fasteners (bolts, nuts, screws)
•Bearings and mechanical parts
•Chains and small forged components
•Stamped and standard metal parts
2.Supported processes include:
•Annealing
•Normalizing
•Quenching
•Tempering
•Carburizing (depending on configuration)
FAQ
1.How do I select the right mesh belt furnace for my production?
We design the solution based on your product size, weight, required output, and heat treatment process.
Our team calculates furnace dimensions and configuration to match your actual production needs.
2.What production capacity can I expect?
Capacity depends on belt width and process setup.
Typical systems range from medium to high output levels, and we provide detailed calculations before quotation.
3.Can multiple processes be integrated into one line?
Yes.
The system can combine heating, quenching, tempering, and cleaning into one continuous production line.
4.How do you ensure temperature uniformity?
We use multi-zone control, optimized heating layout, and PID regulation to maintain consistent temperature across the furnace.
5.How is atmosphere controlled?
The furnace uses a controlled gas system to maintain stable internal conditions and reduce oxidation during processing.
