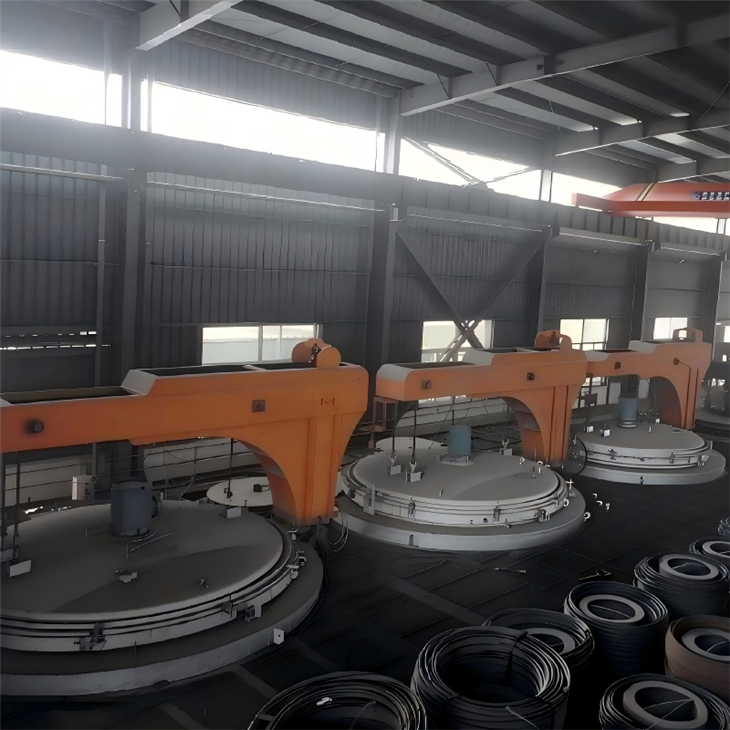

Well Type Heat Treatment Furnace Features
Strong Convection Heating System
The furnace adopts a high-efficiency hot air circulation system to improve heat transfer efficiency and maintain uniform temperature distribution throughout the chamber.
- Faster heating performance
- Stable annealing quality
- Reduced temperature deviation
- Improved product consistency
Vertical Well-Type Structure
The vertical furnace design minimizes floor space while allowing large-capacity coil processing.
- Compact installation
- Easy loading and unloading
- Suitable for continuous production lines
- Better thermal insulation performance
Precise Temperature Control
Equipped with an intelligent PID temperature control system for accurate heat treatment processing.
- Multi-zone temperature control
- Automatic temperature adjustment
- Stable furnace atmosphere
- Digital monitoring interface
Energy Saving Design
The furnace body uses high-quality insulation materials to reduce heat loss and improve thermal efficiency.
- Lower energy consumption
- Reduced operating cost
- Longer service life

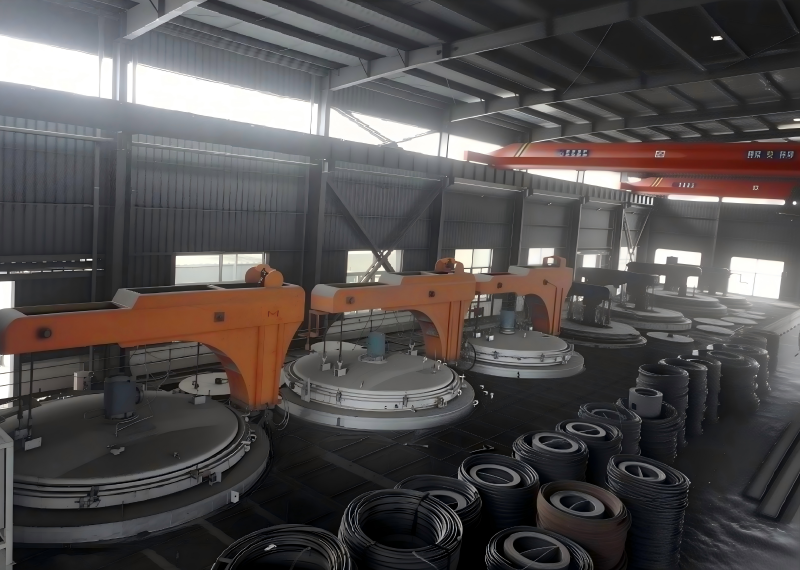

Well Type Annealing Furnace Parameter
| Model | Loading Capacity (t) | Heating Method | Heating Power (KW) | Control Power (KW) | Overall Dimensions (mm) | Loading Dimensions (mm) | Crane Height (mm) |
| HCB-240/240 | 8 | Electric | 245 | 20 | Φ3700*H6940 | Φ2400*H2400 | 7100 |
| HCB-320/240 | 12 | Electric | 400 | 35 | Φ4500*H6940 | Φ3200*H2400 | 7100 |
| HCB-340/240 | 18 | Electric | 420 | 35 | Φ4700*H6940 | Φ3400*H2400 | 7100 |
| HCB-360/240 | 24 | Electric | 480 | 35 | Φ4900*H6940 | Φ3600*H2400 | 7100 |
| HCB-360/340 | 24 | Electric | 480 | 42 | Φ4900*H8050 | Φ3600*H3400 | 9000 |
- Nitrogen protection system
- Automatic loading system
- PLC intelligent control
- Touch screen operation
- Data recording system
- Energy consumption monitoring
- Exhaust gas treatment system
Annealing Heat Treatment Furnace Applications
Pit Type Furnace for Wire Annealing is widely used in multiple industries
This furnace is suitable for:
- Bright annealing
- Spheroidizing annealing
- Stress relieving
- Tempering
- Aging treatment
- Heat preservation processes

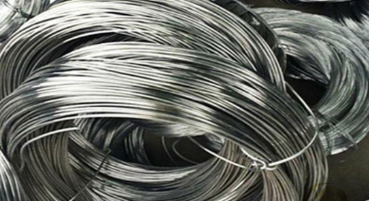

Applicable Materials
- Stainless steel wire
- High carbon steel wire
- Copper wire
- Aluminum wire
- Alloy steel materials
- Metal coils and strips
industrial annealing furnace expert
Extensive Heat Treatment Experience
With years of experience in industrial furnace manufacturing, we provide reliable heat treatment solutions for various industries.
Stable Equipment Quality
High-quality refractory materials and core electrical components ensure long-term stable operation.
Customized Furnace Solutions
We provide customized furnace configurations based on customer process requirements, capacity, and plant layout.
Complete Technical Support
Professional installation, commissioning, process guidance, and after-sales support help customers achieve efficient production.
FAQ
What materials can be processed in this furnace?
The furnace is suitable for stainless steel wire, high carbon steel wire, copper wire, and various alloy wire materials.
Does the furnace support protective atmosphere systems?
Yes. Nitrogen and other protective atmosphere systems are available as optional configurations.
Can the furnace be customized?
Yes. Furnace dimensions, temperature range, and control systems can all be customized.
Do you provide installation and commissioning services?
Yes. We provide installation, commissioning, and technical training services.
